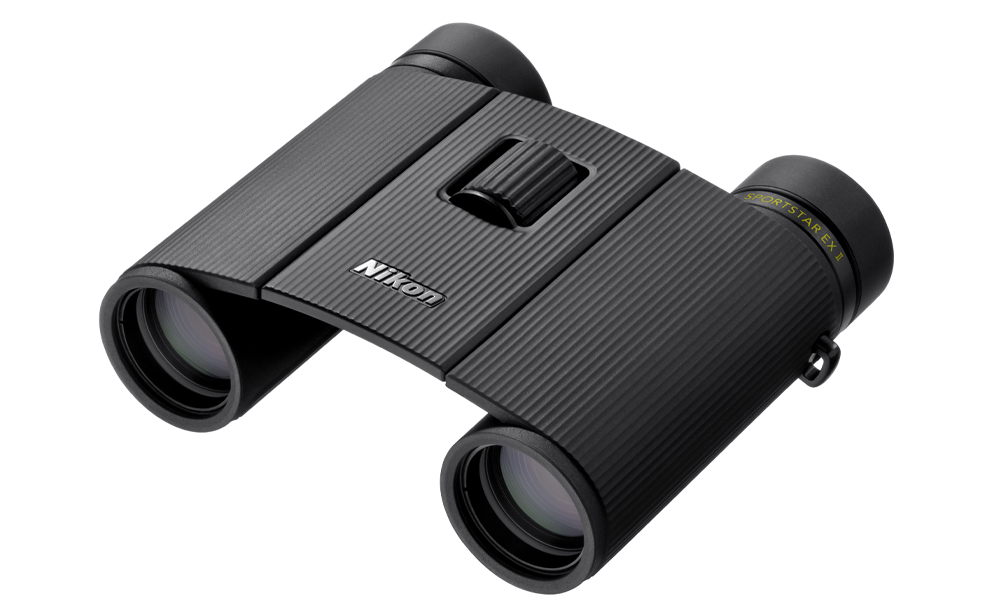

SPORTSTAR EX II

Overview

Feature Icons

  • Roof (Dach) Prism Type
  • CF (Central Focusing)
  • Multilayer Coating
  • Wide Field of View*
  • Rubber Coating
  • Waterproof
  • *8x25 model only

Application Icons

  • Birdwatching, nature watching
  • Outdoors, camping, hiking
  • Spectator sports
  • Travelling
  • Theatre
  • Marine sports, fishing

Key Features

  • Easy-to-grip, advanced ergonomic design realising excellent operability
  • Waterproof structure with nitrogen-filled body for reliable outdoor use
  • Delivers an immersive viewing experience with a wide field of view. In particular, the 8x25 model features a wide apparent field of view of 60.3°
  • Compact, lightweight fold-up design for excellent portability
  • Multilayer-coated lenses provide a bright and clear field of view
  • Turn-and-slide rubber eyecups facilitate easy positioning of eyes at the correct eyepoint
  • Rubber armouring for shock resistance and a firm, comfortable grip
  • Aluminium alloy body for enhanced durability

Specifications

Swipe horizontally to view full table.

SPORTSTAR EX II 8x25 SPORTSTAR EX II 10x25
Magnification (x) 8 10
Objective diameter (mm) 25 25
Angular field of view (Real/degree) 8.3 6.5
Angular field of view (Apparent/degree) 60.3 59.2
Field of view at 1,000m/yd. (m/ft) 145/435 114/341
Exit pupil (mm) 3.1 2.5
Relative brightness 9.6 6.3
Eye relief (mm) 10.0 10.0
Close focusing distance (m/ft) 2.5/8.2 3.5/11.5
Length (mm/in.) 100/3.9 100/3.9
Width (mm/in.) 114/4.5 (69/2.7)*1 114/4.5 (69/2.7)*1
Depth (mm/in.) 44/1.7 (55/2.2)*1 44/1.7 (55/2.2)*1
Weight (g/oz.) 310/10.9 310/10.9
Interpupillary distance adjustment (mm/in.) 56-72/2.2-2.8 56-72/2.2-2.8
Waterproof structure Waterproof (up to 1m/3.3 ft. for 10 minutes)*2, fogproof Waterproof (up to 1m/3.3 ft. for 10 minutes)*2, fogproof
Type Roof Roof
  1. *1Folded
  2. *2Not designed for underwater usage
  1. Note:Apparent field of view is calculated based on the ISO14132-1:2002 standard. For details, click here.
