Fork Mount for 20x120 IV/25x120

Features

  • Fork mount exclusively for Binocular Telescope 20x12 IV/25x120
  • Easy handling with 360° horizontal rotation and -30° (downward) to +70° (upward) tilting

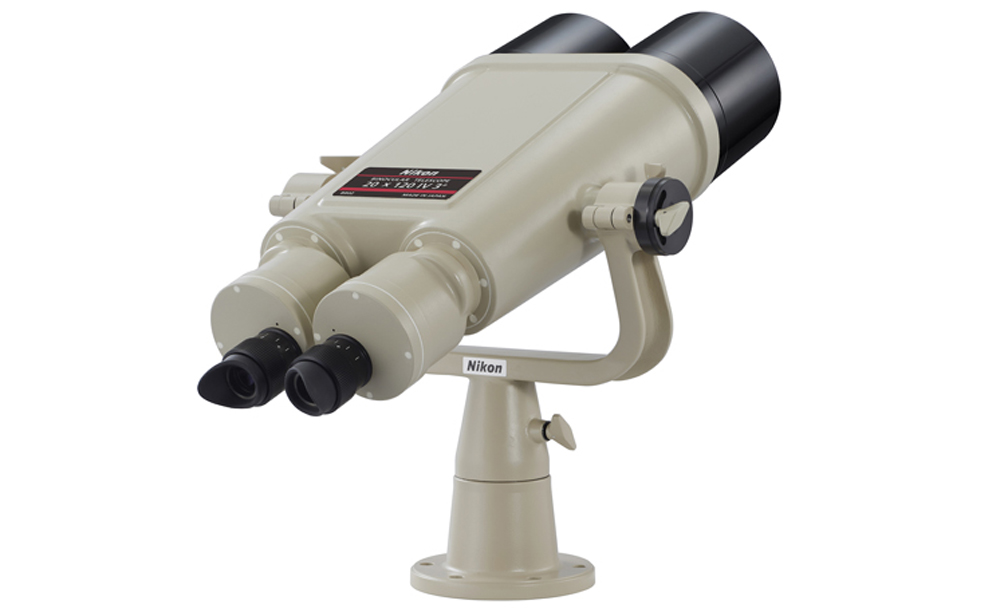

20x120 IV with Fork Mount

Specifications

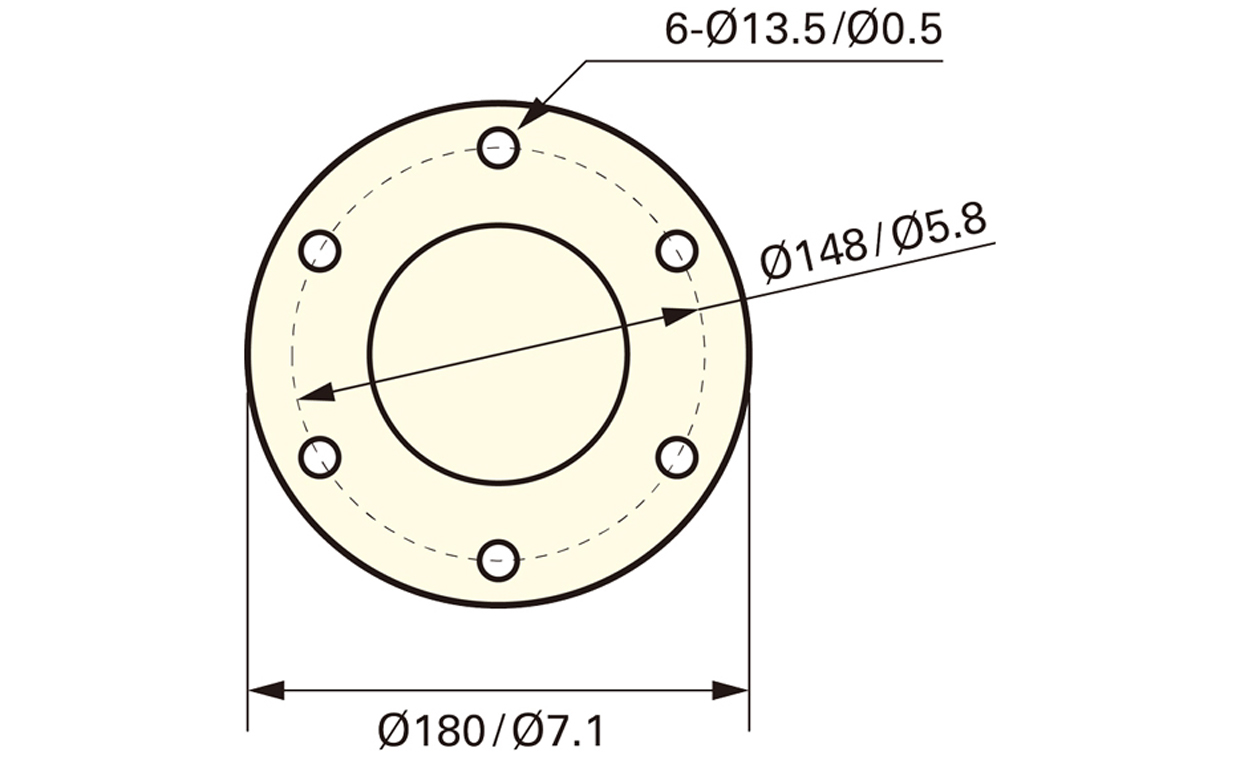

Fork mount base dimensions
Unit: mm/in.
Fork Mount for 20x120 IV/25x120
Tilting angle (upward) (°) 70
Tilting angle (downward) (°) 30
Horizontal rotation (°) 360
Height (mm/in.) 407/16.0
Width (mm/in.) 406/16.0
Weight (kg/oz.) 5.5/194.0
