Specifications
| WX 7×50 IF | WX 10×50 IF | |
|---|---|---|
| Magnification (×) | 7 | 10 |
| Objective diameter (mm) | 50 | 50 |
| Angular field of view (Real/degree) | 10.7 | 9.0 |
| Angular field of view (Apparent/degree)* | 66.6 | 76.4 |
| Field of view at 1,000m (m) | 188 | 157 |
| Field of view at 1,000 yd. (ft) | 563 | 472 |
| Exit pupil (mm) | 7.1 | 5.0 |
| Relative brightness | 50.4 | 25.0 |
| Eye relief (mm) | 17.7 | 15.3 |
| Close focusing distance (m/ft) | 12.3/40.4 | 20.0/65.6 |
| Length (mm/in.) | 272/10.7 | 291/11.5 |
| Width (mm/in.) | 171/6.7 | 171/6.7 |
| Depth (mm/in.) | 80/3.1 | 80/3.1 |
| Weight (g/oz) | 2,420/85.4 | 2,505/88.4 |
| Interpupillary distance adjustment (mm/in.) | 58-78/2.3-3.1 | 58-78/2.3-3.1 |
| Dioptre Adjustment (m-1) | -6-+4 | -6-+5 |
| Type | Roof (Abbe-Koenig) | Roof (Abbe-Koenig) |
|
|
* Apparent field of view is calculated based on the ISO 14132-1:2002 standard.
Supplied Accessories
-

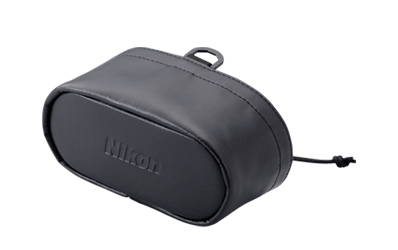

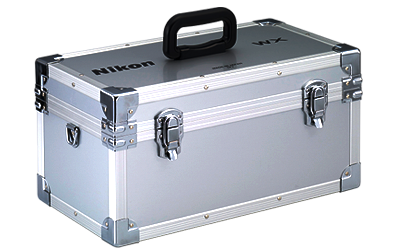

Case -

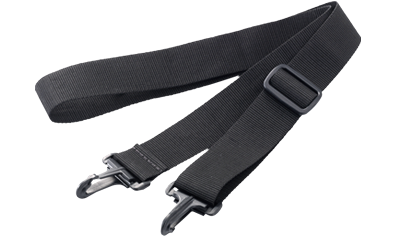

Case strap -

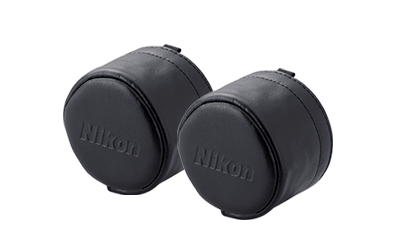

Cover-type objective lens caps -
Cover-type eyepiece cap -

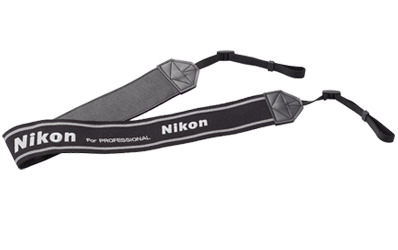

Neck strap -

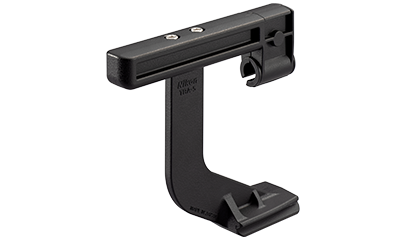

Tripod adaptor TRA-5
