Universal Bracket

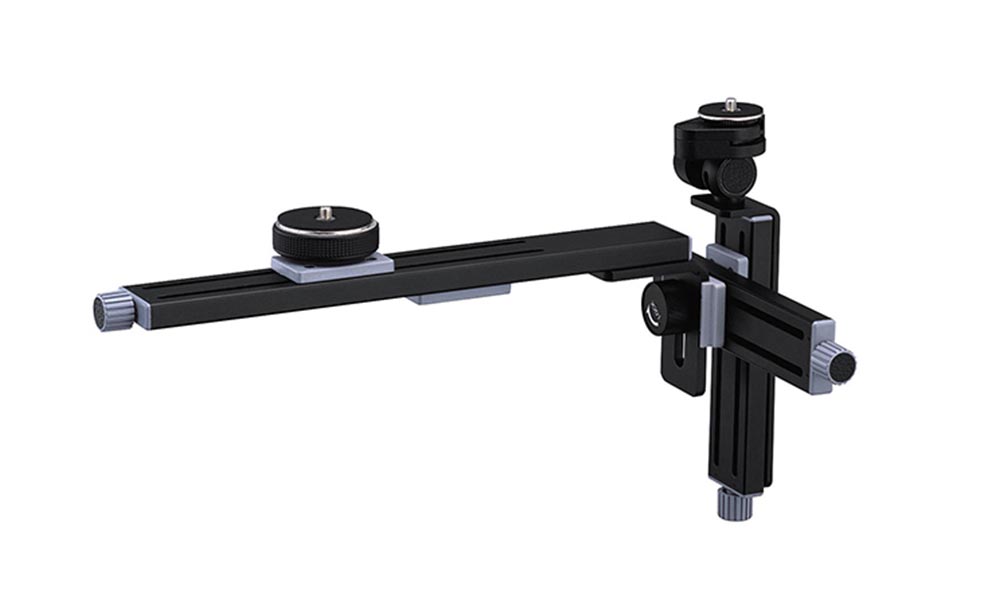

This bracket enables you to connect a Nikon 1 Advanced Camera with Interchangeable Lens mounted with a 1 NIKKOR lens, or one of a variety of Nikon COOLPIX digital compact cameras, to a Nikon Fieldscope mounted with an eyepiece, to realize digiscoping.

  • Note: Even when the camera is correctly attached to the universal bracket, vignetting may occur with specific functions.
Compatible Fieldscope models (as of February, 2015):
EDG Fieldscope: 85 VR/85/65
Fieldscope: ED82/EDIII/III/ED50
Compatible eyepieces (as of February, 2015):
EDG Fieldscope eyepieces: FEP-20W/FEP-30W/FEP-38W/FEP-50W/FEP-75W/FEP-25LER
DS Fieldscope eyepieces: 16x/24x/30x Wide DS, 27x/40x/50x Wide DS, 40x/60x/75x/Wide DS
Compatible cameras (as of February, 2015):
Nikon 1 Advanced Cameras with Interchangeable Lenses V2, V1, J3, J2, J1, S1
Compatible 1 NIKKOR Lenses (as of February, 2015):
1 NIKKOR VR 10-30mm f/3.5-5.6
1 NIKKOR VR 11-27.5mm f/3.5-5.6
1 NIKKOR 18.5mm f/1.8
Compatible digital cameras (COOLPIX) (as of February, 2015):
P340, P330, S5200, S4400, S2900, S2800, S2750, S2700, S33, S32, S31, L32, L31, L30, L29, L28, L27, AW110

Specifications

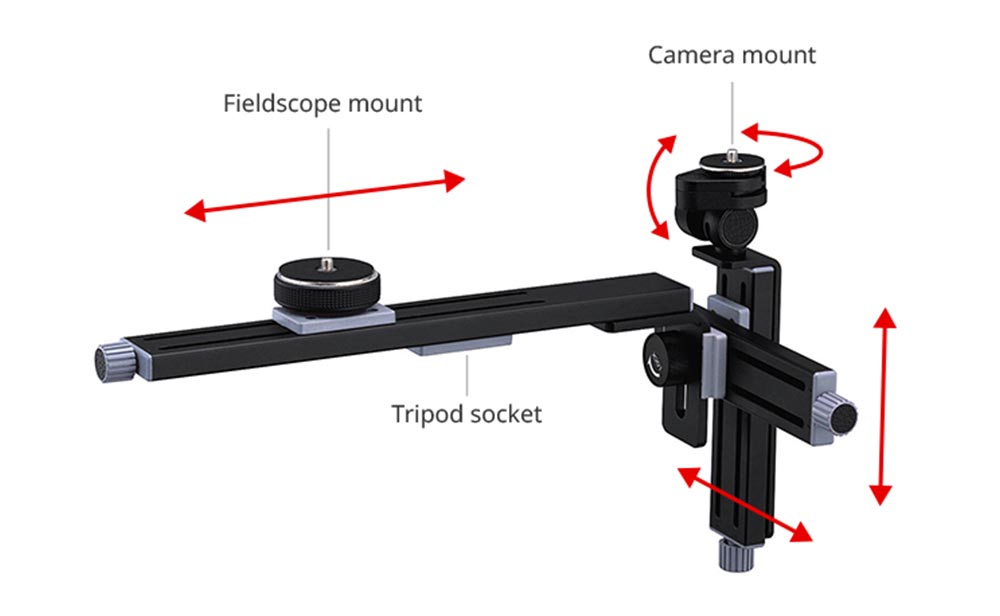

Range of movement
Front-back (from tripod hole) 150mm (front) to 30mm (back)
Left-right (from tripod hole) 87.5mm (left) to 22.5mm (right)
Up-down 0mm to 236mm
Range of rotation
Horizontal ±180º
Vertical ±75º
Dimensions 400 (D) x 190 (W) x 240 (H) mm
Weight 980g
